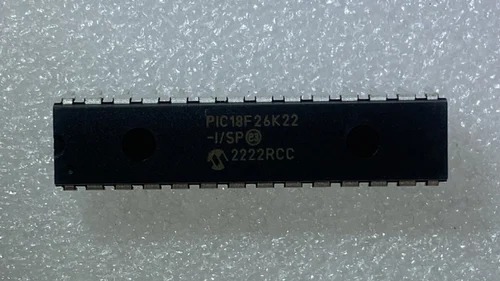

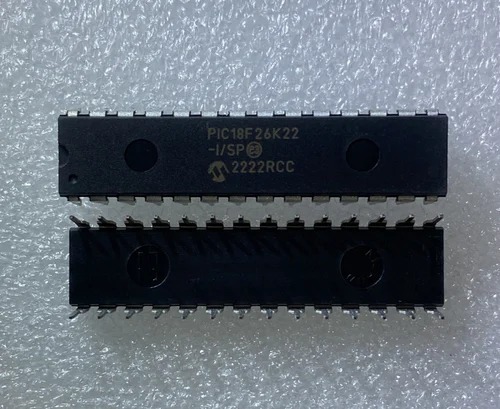

PIC18F26K22-I/SP - Microchip Technology

PIC18F26K22-I/SP - Microchip Technology Specification

Interface
SPI, I2C, USART

Power Supply
DC

Processor Speed
64MHz Max Frequency

Power Source
External DC

Sensors Specification
Supports Digital and Analog Sensors

Response Time
Fast Processing

Operating Temperature
-40C to +85C

Components
PIC18F26K22 Microcontroller

Usage
Embedded System Applications

Input
Digital/Analog Inputs

Output
Digital/Analog Outputs

Thermal Conductivity
Standard

Resolution
10-bit ADC Resolution

Features
Low Power Consumption, Enhanced Flash, PIC18 Architecture

Product Type
IC Microcontroller

Application
General Purpose, Control Systems, Industrial Automation

Rated Voltage
5V

Supply Voltage
2.0V - 5.5V

Size
18 Pins Dual In-Line Package

Dimension (L*W*H)
23.88mm x 6.35mm x 3.30mm

Function
Microcontroller

Color
Black

Weight
Approx. 1.6 g

Capacity
Up to 256KB Flash Memory

Thickness
Standard DIP Profile

Current Rating
Up to 25mA per I/O pin

Frequency
Up to 64 MHz

Data Bus Width
8-bit

PWM Channels
2

Mounting Type
Through Hole

Program Memory Type
Flash

Flash Memory
64KB

RoHS Status
Compliant

Lead Pitch
2.54 mm

Model Number
PIC18F26K22-I/SP

Oscillator Type
Internal/External

Timer
4 x 8-bit, 3 x 16-bit

Device Core
PIC18F

Package Type
DIP-28

Pin Count
28

EEPROM Size
256 Bytes

Number of I/O Pins
25

RAM Size
1536 Bytes

Analog Channels
17

PIC18F26K22-I/SP - Microchip Technology Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash in Advance (CID)

Sample Policy
Free samples are available

Main Domestic Market
All India

About PIC18F26K22-I/SP - Microchip Technology

PIC18F26K22-I/SP - Microchip Technology

Specification/Additional Details

Model Name/Number PIC18F26K22

Brand MICROCHIP

Mounting Type DIP

RAM Size3896

ADC Resolution19

Part Number PIC18F26K22

High Performance and Versatile Memory Options

The PIC18F26K22-I/SP microcontroller boasts 64KB of Flash memory, 1536 bytes of RAM, and 256 bytes of EEPROM, ideal for applications requiring substantial data storage and fast access. Its 8-bit architecture ensures efficient data processing, and the 10-bit ADC resolution allows for accurate analog input sensing, suitable for various control and sensor-driven systems.

Connectivity and Peripheral Support

This microcontroller supports multiple digital interfaces including SPI, I2C, and USART, ensuring flexible integration with a wide array of peripheral devices. It offers 25 I/O pins and 17 analog channels, giving developers the tools to build collaborative and complex embedded systems, from automation to signal acquisition.

Robust Design for Industrial Applications

Engineered with a wide operating voltage range (2.0V - 5.5V) and temperature tolerance from -40C to +85C, the PIC18F26K22-I/SP is reliable in challenging environments. Its robust through-hole DIP-28 package simplifies prototyping and deployment in both new and legacy systems, making it a dependable choice for suppliers and traders in Taiwan and globally.

FAQ's of PIC18F26K22-I/SP - Microchip Technology:

Q: How is the PIC18F26K22-I/SP microcontroller used in embedded system applications?

A: The PIC18F26K22-I/SP microcontroller serves as the central processing unit in embedded systems, handling both digital and analog inputs/outputs. Its features-like 17 analog channels, PWM outputs, and multiple timers-make it suitable for automation, sensing, and control tasks in industrial and general-purpose environments.

Q: What are the key benefits of using the PIC18F26K22-I/SP in control systems?

A: This microcontroller offers high-speed operation (up to 64MHz), multiple timers, and advanced analog-to-digital conversion, enabling precise timing and reliable signal processing. Its robust memory and flexible peripheral support streamline development and increase system reliability in control applications.

Q: Where can the PIC18F26K22-I/SP be integrated within a system?

A: Thanks to its versatile I/O configuration and standard DIP-28 through-hole packaging, the PIC18F26K22-I/SP can be integrated onto prototype boards, custom PCBs, or existing legacy hardware in both industrial and general-purpose electronic devices.

Q: When should I choose the PIC18F26K22-I/SP for my project?

A: Select this microcontroller when your application requires a blend of speed, robust analog/digital interfacing, extended temperature operation, and substantial program/data memory. It performs exceptionally in projects demanding reliable control and sensor integration.

Q: How can I interface sensors with the PIC18F26K22-I/SP?

A: You can connect digital sensors using its I/O pins and analog sensors through the 17 analog channels with a 10-bit ADC, facilitating precise data acquisition. Communication with external modules is also possible via SPI, I2C, or USART interfaces.

Q: What is the process for programming the PIC18F26K22-I/SP?

A: Programming is accomplished via in-circuit serial programming (ICSP) using compatible tools like MPLAB X IDE and a suitable programmer. Its Flash memory supports multiple reprogramming cycles, enabling quick updates and iterative development during prototyping.
