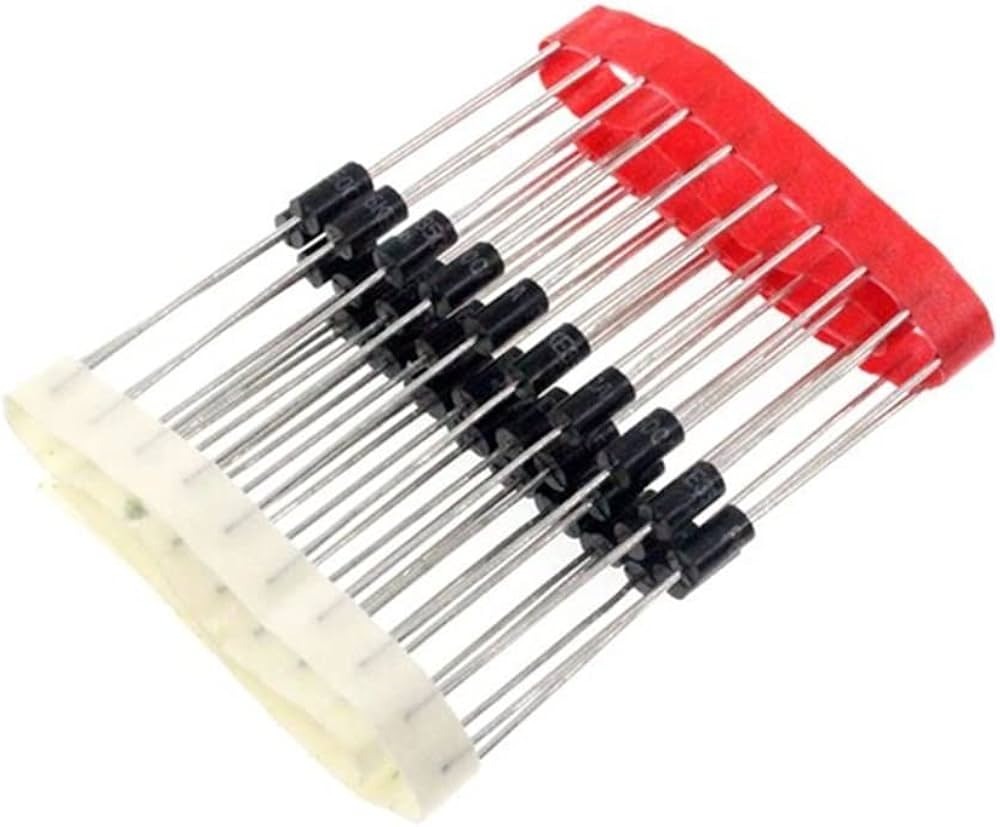

P6KE TVS DIODE SERIES

P6KE TVS DIODE SERIES Specification

Power Source
Not Applicable (Passive device)

IP Rating
Not Rated

Operating Temperature
-55C to +175C

Output
Clamped Voltage to Safe Level

Usage
Protects sensitive electronic devices from voltage spikes

Input
AC/DC Surge or Transient Voltage

Response Time
Fast response time (<1 picosecond from 0V to breakdown)

Features
Low clamping voltage, high surge capability, fast response time, glass passivated junction

Components
Silicon Semiconductor

Interface
Axial Lead

Power Supply
Not Applicable (Passive Component)

Product Type
TVS Diode

Application
Electronic circuits, Automotive, Power supplies, Industrial controls

Rated Voltage
Varies by model, typically 6.8V to 440V

Supply Voltage
Application dependent, rated per part number

Size
DO-15 Package

Dimension (L*W*H)
Approx. 7.6mm (Length, body) x 2.6mm (Diameter)

Function
Transient Voltage Suppressor (TVS) Diode

Color
Black (Body), Silver (Leads)

Weight
Approx. 0.3g (per piece)

Current Rating
Peak Pulse Current: Typically up to 43A (10/1000s waveform, varies by part)

Thickness
Approx. 2.6mm (Body Diameter)

Frequency
Not Specified (Handles transient pulses)

Storage Temperature
-55C to +175C

Lead Material
Tinned Copper

Peak Pulse Power Dissipation
600W (10/1000s waveform)

Breakdown Voltage
Varies, specified per part number (e.g., 6.8V, 12V, 24V, etc.)

Mounting Style
Through Hole

Reverse Leakage Current
<1A (at rated stand-off voltage)

Polarity
Uni-directional or Bi-directional, depending on specific model

Body Material
Molded Plastic (DO-15)

RoHS Status
Compliant

Clamping Voltage
Specified per part number

Reverse Stand-off Voltage
Specified per part number

About P6KE TVS DIODE SERIES

P6KE TVS DIODE SERIES

Transient Voltage Suppressor (TVS) Diodes Axial Lead, 600W

Product / Service Description

The P6KE TVS Diode Series is a high-reliability transient voltage suppressor family designed to protect sensitive electronic circuits from high-energy voltage transients such as lightning surges, inductive load switching, and ESD events. With a 600W peak pulse power capability (10/1000 s) and fast response time, the P6KE series is widely used in industrial, power supply, automotive (non-AEC), telecom, and consumer electronics applications.

Diode House is a leading stockist and distributor across India, supplying 100% genuine, brand-certified components. We also support export supply to UAE (Dubai), Bangladesh, Sri Lanka, and other international markets.

Key Features & Technical Specifications

Peak Pulse Power: 600 W (10/1000 s waveform)
Voltage Range (VRWM): 5.0 V to 440 V
Package: Axial Leaded (DO-15)
Polarity Options:

Unidirectional: P6KEA
Bidirectional: P6KECA

Response Time: < 1 ns (typical)
Operating Temperature: 55 C to +150 C
Low Leakage Current
Excellent Clamping Capability
RoHS Compliant, Halogen Free

Applications / Uses

SMPS & Power Supplies
Industrial Control Panels
Inverters & UPS Systems
Telecom & Networking Equipment
Automotive Electronics (General)
LED Drivers & Lighting Systems
Consumer & White Goods Electronics
PLC I/O Protection & Signal Lines

Benefits

Protects circuits from surge, spike, and transient over-voltage
Enhances system reliability and lifespan
Suitable for high-energy transient environments
Cost-effective protection solution
Easy PCB assembly with axial leads

P6KE Series Common Part Numbers

Unidirectional (A):
P6KE5.0A, P6KE6.8A, P6KE7.5A, P6KE8.2A, P6KE10A, P6KE12A, P6KE15A, P6KE18A, P6KE20A, P6KE22A, P6KE24A, P6KE27A, P6KE30A, P6KE33A, P6KE36A, P6KE39A, P6KE43A, P6KE47A, P6KE51A, P6KE56A, P6KE62A, P6KE68A, P6KE75A, P6KE82A, P6KE91A, P6KE100A, P6KE110A, P6KE120A, P6KE130A, P6KE150A, P6KE160A, P6KE170A, P6KE180A, P6KE200A, P6KE220A, P6KE250A, P6KE300A, P6KE350A, P6KE400A, P6KE440A

Bidirectional (CA):
P6KE5.0CA, P6KE6.8CA, P6KE7.5CA, P6KE8.2CA, P6KE10CA, P6KE12CA, P6KE15CA, P6KE18CA, P6KE20CA, P6KE22CA, P6KE24CA, P6KE27CA, P6KE30CA, P6KE33CA, P6KE36CA, P6KE39CA, P6KE43CA, P6KE47CA, P6KE51CA, P6KE56CA, P6KE62CA, P6KE68CA, P6KE75CA, P6KE82CA, P6KE91CA, P6KE100CA, P6KE110CA, P6KE120CA, P6KE130CA, P6KE150CA, P6KE160CA, P6KE170CA, P6KE180CA, P6KE200CA, P6KE220CA, P6KE250CA, P6KE300CA, P6KE350CA, P6KE400CA, P6KE440CA

Equivalent / Alternate Brands Available

Vishay
Littelfuse
ON Semiconductor
STMicroelectronics
Bourns
Diotec
MCC (Micro Commercial Components)
Rectron
Good-Ark

(Equivalent specifications available across brands.)

Why Buy from Diode House

Pan-India Stockist & Distributor
Genuine, traceable components only
Bulk & project-based supply support
Fast dispatch & export-ready documentation
Trusted supplier for industrial electronics

Alternate Names / Keywords for Searching

P6KE TVS Diode, 600W TVS Diode, Axial TVS Diode, Transient Voltage Suppressor Diode, P6KE Series TVS, Surge Protection Diode, P6KE Unidirectional TVS, P6KE Bidirectional TVS, DO-15 TVS Diode

Exceptional Surge Protection

The P6KE TVS Diode Series excels at safeguarding electronic circuits from damaging voltage spikes and surges. Rapid response times and high peak pulse current capabilities ensure sensitive devices remain protected during transient events, making them invaluable in surge-prone applications such as power supplies, automotive systems, and industrial controls.

Versatile Applications and Models

This series caters to a wide range of voltage requirements, with breakdown voltages specified per part number, accommodating rated voltages from 6.8V to 440V. Users can select from uni-directional or bi-directional types based on circuit design needs, providing flexibility for both AC and DC surge protection across various industries.

Robust Construction and Easy Installation

Built with a rugged molded plastic body and tinned copper leads, P6KE TVS diodes are engineered for through-hole mounting and long-lasting performance. Their compact DO-15 package (approx. 7.6mm x 2.6mm) and lightweight design facilitate straightforward integration into densely packed circuit boards, ensuring reliable operation in challenging environments.

FAQ's of P6KE TVS DIODE SERIES:

Q: How does the P6KE TVS Diode Series protect electronic devices?

A: The P6KE TVS Diode series acts as a transient voltage suppressor, rapidly clamping excessive voltages caused by surges or transients to a safe level, thus shielding sensitive electronic components from damage.

Q: What are the main differences between uni-directional and bi-directional P6KE diodes?

A: Uni-directional diodes are designed for circuits with a preferred current flow, commonly DC, while bi-directional models are suited for AC circuits where voltage spikes can occur in both directions. Selection depends on the application's voltage polarity demands.

Q: When should I use a P6KE TVS diode in my circuit design?

A: P6KE TVS diodes are ideal for use whenever there is a risk of transient voltage spikes, such as in power supplies, automotive electronics, or industrial controls, to ensure longevity and reliability of sensitive circuitry.

Q: Where can the P6KE TVS Diode Series be installed?

A: These diodes are easily mounted through-hole on printed circuit boards (PCBs) in a wide range of devices, including automotive modules, industrial equipment, and power supply units, due to their standard DO-15 axial lead package.

Q: What is the process for selecting the appropriate P6KE model for my application?

A: Determine your circuit's normal operating voltage and choose a diode with a reverse stand-off voltage slightly above that level. Then, select a model with adequate clamping voltage and peak pulse current appropriate for the anticipated surge environment.

Q: How fast does the P6KE TVS diode respond to surges?

A: The P6KE features extremely fast response times, less than one picosecond from 0V to breakdown, making it highly effective in protecting circuits from even the quickest voltage transients.

Q: What are the key benefits of using P6KE TVS diodes?

A: These diodes offer low clamping voltage, high surge capability, rapid response, RoHS compliance, robust construction, and easy integration into electronic systems, ensuring reliable and long-term circuit protection.
